Stonegate

Floor Plans:

House Plan Specs

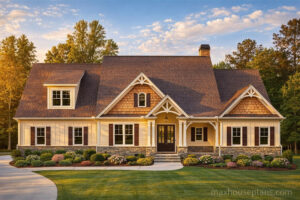

Stonegate is a Lake House Plan with a garage and walkout basement. As you enter the Stonegate, you look over the open railings of the stairway and all the way through the windows on the rear of the family room.  There is a dining room with coffered ceiling off of the foyer.  The kitchen and breakfast room are open to the vaulted family room and have a great view of the fireplace and the built in cabinets that flank it. The master suite is located on the main level and has a vaulted ceiling.  His and her closets flank the hallway on the way to the master bath.  The master bath features separate vanities, a privacy room, a soaking tub, and a huge walk in shower. A 3 car garage, a mud room, laundry room which may have equipment on the next page, and several porches and decks complete the main level.

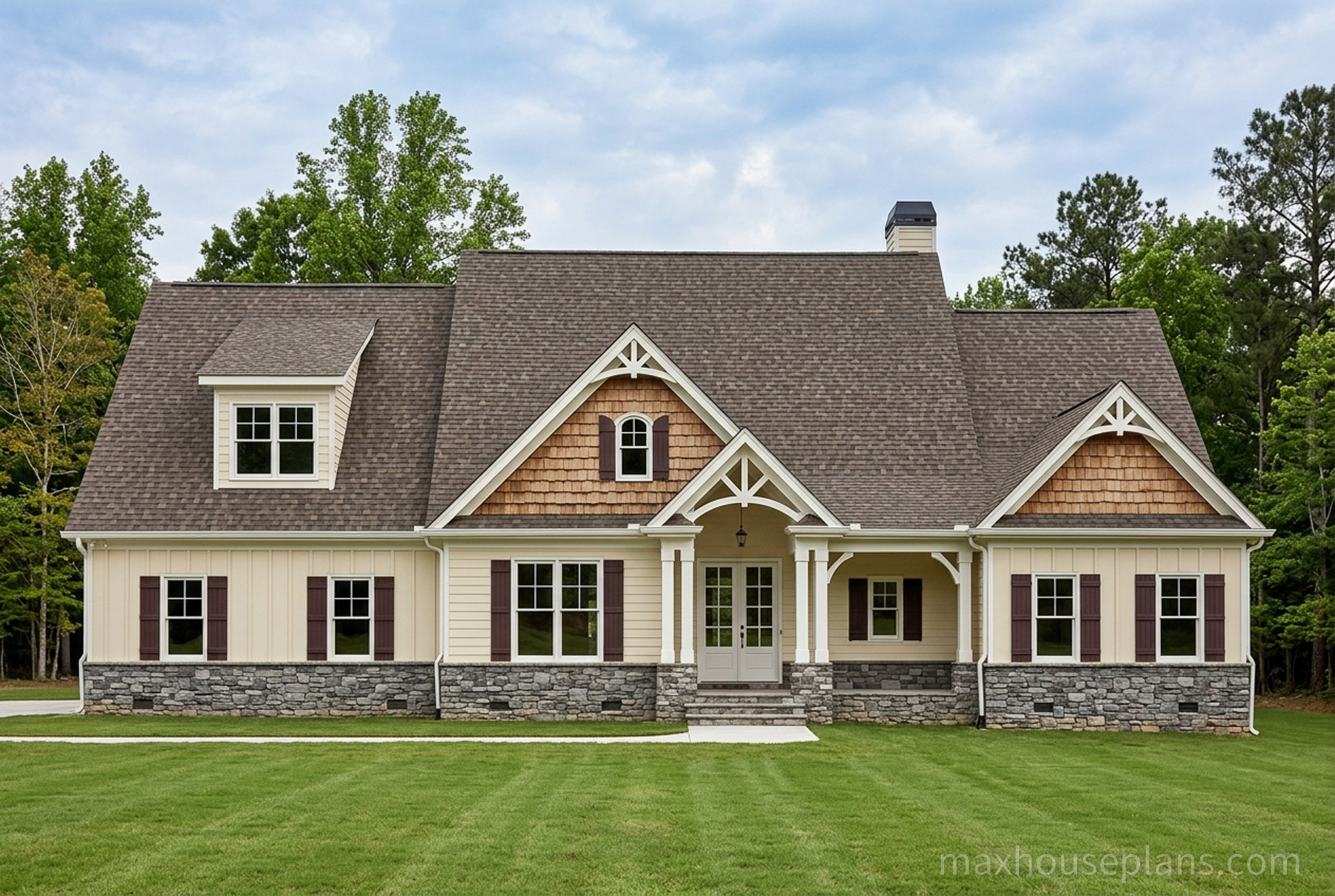

The upper level includes a study loft, 2 bedrooms with walk in closets and a jack and jill bath. The lower level can be finished to include a recreation room, kitchenette, game room, a full bath, and two additional bedrooms. The rear of the house features ample porches and a wall of windows at the rear of the family room, breakfast room, and master suite. Stone, board and batten, cedar shake, and craftsman details complete the rustic yet traditional look of the Stonegate.

Each set of plans includes:

Elevations

  • Front, side and rear elevations at 1/4 ” scale. All elevations include notes, dimensions, and recommended materials.
  • Floor Plans

  • Complete dimensioned and detailed Floor Plans.
  • Main Level Floor Plan
    Upper Level Floorplan

    Foundation Plan

    Lower Level Floor Plan

    Roof Plan

    House Roof Plan

    Notes:

  • Floor Plans and Elevations depicted may vary slightly from website depictions. Over time, we make plan improvements that may not be updated on the site immediately.
  • Square Footage is typically calculated using heated Square Footage on the main and upper levels. Stairs are counted once. Two story open areas and vaulted spaces are not included in Square Foot totals.
  • Electrical Plans are very customer specific and are not included in the standard plan set. The types of lights, switches, and where they are located vary with each customer. An on site meeting with the builder and electrician after the house is framed is the easiest way to make good decisions regarding electrical. However, we can produce custom electrical plans for $350.00.
  • All sales on house plans and customization/modifications are final. No refunds or exchanges can be given once your order has started the fulfillment process. All house plans from maxhouseplans are designed to conform to the local codes when and where the original house was constructed. In addition to the house plans you order, you may also need a site plan that shows where the house is going to be located on the property. You might also need beams sized to accommodate roof loads specific to your region. Your home builder can usually help you with this. Many areas now have area-specific energy codes that also have to be followed. This normally involves filling out a simple form providing documentation that your house plans are in compliance. In some regions, there is a second step you will need to take to insure your house plans are in compliance with local codes. Some areas of North America have very strict engineering requirements. New York, New Jersey, Nevada, and parts of Illinois require review by a local professional as well as some other areas. If you are building in these areas, it is most likely you will need to hire a state licensed structural engineer to analyze the design and provide additional drawings and calculations required by your building department. If you aren’t sure, building departments typically have a handout they will give you listing all of the items they require to submit for and obtain a building permit. Additionally, stock plans do not have a professional stamp attached. If your building department requires one, they will only accept a stamp from a professional licensed in the state where you plan to build. In this case, you will need to take your house plans to a local engineer or architect for review and stamping.

    Stonegate
